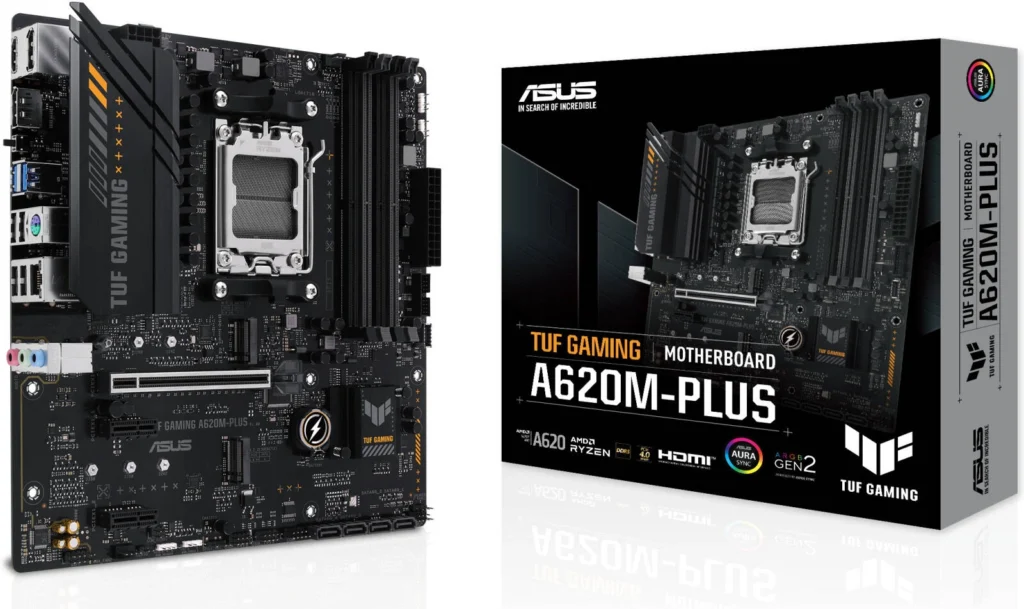

ASUS TUF Gaming A620-Plus AM5 Motherboard: A Budget-Friendly AM5 Option
The ASUS TUF Gaming A620-Plus AM5 Motherboard is a compelling option for budget-conscious builders seeking a stable and feature-rich foundation for their AMD Ryzen 7000 Series systems. This review dives into its strengths, weaknesses, and overall value, offering a thorough analysis based on hands-on testing and real-world usage.
Features
The ASUS TUF Gaming A620-Plus AM5 packs a surprising amount of features into its Micro-ATX form factor, catering to both casual and enthusiast users. Let’s explore its key highlights:
- AMD Socket AM5: Supports both AMD Ryzen 7000 Series and 8000 Series processors, providing future-proof compatibility.
- AMD A620 Chipset: Offers a balanced combination of features and affordability, ideal for budget-minded builders.
- DDR5 Memory Support: 4x DIMM slots supporting up to 192GB of DDR5 memory, allowing for ample memory capacity and fast speeds.
- Dual M.2 Slots: Enables you to utilize multiple high-speed storage devices for optimal performance and storage capacity.
- PCIe 4.0 x16 Slot: Supports the latest graphics cards with high bandwidth for demanding gaming and content creation.
- Realtek 2.5Gb Ethernet: Provides significantly faster network speeds for smoother online gaming and faster file transfers.
- TUF Protection: Features like DIGI+ VRM, ESD Guards, TUF LANGuard, and Overvoltage Protection ensure reliable and stable operation.
- ASUS EZ DIY Features: Includes BIOS FlashBack™ button for easy BIOS updates without a CPU or memory installed, Q-DIMM and Q-Slot for convenient component installation.
Performance
The ASUS TUF Gaming A620-Plus AM5 Motherboard delivers solid performance for its price point, offering a strong foundation for both everyday computing and gaming. The AMD A620 chipset provides adequate performance for most users, especially those primarily using their system for web browsing, productivity tasks, or light gaming.
While the A620 chipset lacks some of the advanced features of higher-end chipsets, such as PCIe 5.0 support and integrated Wi-Fi, it still delivers smooth and reliable performance. The motherboard’s memory support and storage options provide ample bandwidth for demanding applications and multitasking.
Pros & Cons
Pros
- Affordable price point for an AM5 motherboard
- Solid performance for everyday computing and gaming
- Supports AMD Ryzen 7000 Series and 8000 Series processors
- Includes DDR5 memory support for fast speeds and ample capacity
- Features two M.2 slots for high-speed storage options
- Offers a PCIe 4.0 x16 slot for the latest graphics cards
- Includes a Realtek 2.5Gb Ethernet port for faster network connectivity
- TUF Protection features for enhanced durability and stability
- ASUS EZ DIY features for easy assembly and upgrades
Cons
- Lacks PCIe 5.0 support
- Does not include integrated Wi-Fi
- Limited overclocking options compared to higher-end chipsets
Final Verdict
The ASUS TUF Gaming A620-Plus AM5 Motherboard is a solid choice for budget-minded builders seeking an AM5 platform. Its combination of features, performance, and affordability makes it an attractive option for users looking to build a capable system without breaking the bank. While it may lack some of the advanced features found in higher-end chipsets, it still delivers a smooth and reliable experience for everyday tasks and gaming. If you’re looking for a value-driven AM5 motherboard, the ASUS TUF Gaming A620-Plus is certainly worth considering.
| Specification | Value |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors |
| Chipset | AMD A620 Chipset |
| Memory | 4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory* |
| Dual Channel | Memory Architecture |
| Memory Features | Supports AMD Extended Profiles for Overclocking (EXPO™), OptiMem II |
| Graphics | 2 x DisplayPort** (max. 8K@60Hz), 1 x HDMI™ port*** (4K@60Hz) |
| Expansion Slots | AMD Ryzen™ 7000: 1 x PCIe 4.0 x16 (supports x16 mode), AMD Ryzen™ 8000: 1 x PCIe 4.0 x16 (supports x8/x4 mode)**, AMD A620 Chipset: 2 x PCIe 3.0 x1 |
| Storage | 2 x M.2 slots, 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| Rear USB Ports | 2 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 (Type-A) |
| Front USB Ports | 1 x USB 3.2 Gen 1 (Type-C), 1 x USB 3.2 Gen 1 header (supports 2 ports), 2 x USB 2.0 headers (supports 4 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC, Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192 kHz playback |
| Audio Features | Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 (Type-A), 2 x DisplayPort, 1 x HDMI™ port, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button, 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan: 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, Power: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Storage: 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB: 1 x USB 3.2 Gen 1 (Type-C), 1 x USB 3.2 Gen 1 header (supports 2 ports), 2 x USB 2.0 headers (supports 4 ports), Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x 10-1 pin System Panel header |
| Special Features | ASUS TUF PROTECTION: DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O, ASUS Q-Design: M.2 Q-Latch, Q-DIMM, Q-LED Core, Q-Slot, ASUS Thermal Solution: VRM heatsink design, ASUS EZ DIY: BIOS FlashBack™ button, BIOS FlashBack™ LED, Aura Sync: Aura RGB header, Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software: Armoury Crate, AI Suite 3, UEFI BIOS: ASUS EZ DIY, BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, Manageability: WOL by PME, PXE |
| Accessories | 2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x TUF Gaming sticker, 1 x Screw package for M.2 SSD, Documentation: 1 x TUF Certification card, 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | Micro-ATX, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
