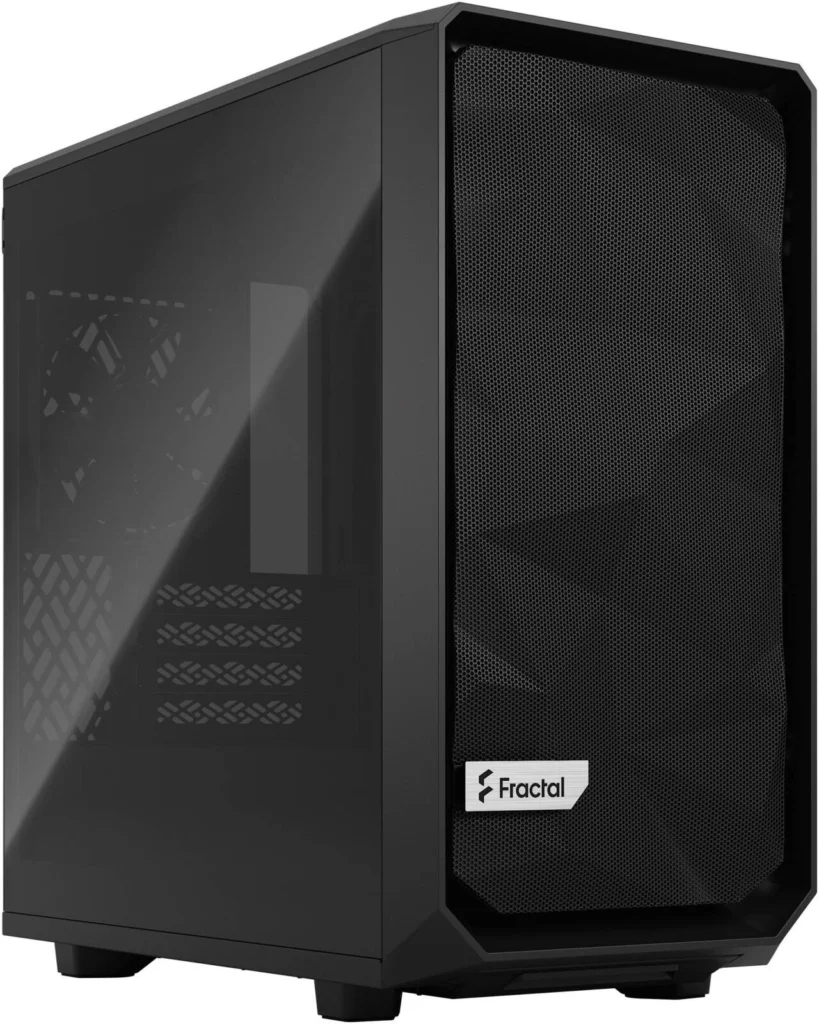

Fractal Meshify 2 Mini mATX Computer Case Review – FD-C-MES2M-01
Fractal Meshify 2 Mini mATX Computer Case Review: A Compact Powerhouse?
The Fractal Meshify 2 Mini is a compact mATX case designed for serious PC builders looking for a balance of size, performance, and aesthetics. This review dives into the features, performance, and overall experience of the Meshify 2 Mini (FD-C-MES2M-01), helping you decide if it’s the right fit for your next build.
Table of Contents
Introduction
The Fractal Meshify 2 Mini is the smaller sibling to the full-sized Meshify 2. It’s targeted towards users who prioritize a compact footprint without sacrificing features or build quality. The case boasts excellent cooling capabilities, a clean design, and a plethora of features, making it a compelling option for both casual and hardcore PC enthusiasts.
Features & Design
The Meshify 2 Mini is a well-designed case with a focus on functionality. Let’s break down some of its key features:
| Feature | Specification |
|---|---|
| 3.5″/2.5″ drive mounts | 2 (included) |
| Dedicated 2.5″ drive mounts | 4 (2 included), max 8 mm drive height for mounts behind motherboard plate |
| Expansion slots | 4 |
| Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button |
| Total fan mounts | 7x 120 mm or 4x 140 mm |
| Front fan | 3x 120/2x 140 mm (1x Dynamic X2 GP-14 included) |
| Top fan | 2x 120/140 mm |
| Rear fan | 1x 120 mm (1x Dynamic X2 GP-12 included) |
| Bottom fan | 1x 120 mm (requires removal of HDD cage) |
| Dust filters | Top, front, and bottom |
| Cable routing space | 15-25 mm |
| Cable routing grommets | Yes |
| Fixed cable straps | Yes |
| Tool-less push-to-lock | Top, front, and side panels |
| Captive thumbscrews | HDD, SSD, and PSU brackets |
| Left side panel | Tempered glass |
| Right side panel | Steel |
| Motherboard compatibility | mATX / DTX / Mini-DTX / Mini ITX |
| Power supply type | ATX |
| Front radiator | Up to 240/280 mm |
| Top radiator | Up to 240 mm |
| Rear radiator | 120 mm |
| Bottom radiator | 120 mm (without HDD Cage) |
| PSU max length | 165 mm recommended with HDD cage (200 mm without HDD cage) |
| GPU max length | 331 mm, 306 mm with front fan |
| CPU cooler max height | 167 mm |
| RAM max height | 35 mm |
| Case dimensions (LxWxH) | 396 x 205 x 406 mm |
| Case dimensions w/o feet/protrusions/screws | 384 x 205 x 390 mm |
| Net weight | 6.62 kg |
| Package dimensions (LxWxH) | 457 x 277 x 462 mm |
| Gross weight | 7.68 kg |
| Package contents | Meshify 2 Mini case, User manual, Accessory box |
The Meshify 2 Mini’s design is sleek and functional. The front panel features a minimalist look with a mesh grille that provides ample airflow. The tempered glass side panel offers a clear view of your components and is secured by a bolt-free mechanism, making it easy to remove. The top panel houses two easily removable dust filters, while the bottom filter is accessible via a pull-out drawer. This comprehensive dust filtration system helps to keep your components clean and free from dust build-up.
Performance & Cooling
One of the Meshify 2 Mini’s strengths is its cooling performance. With 7x 120mm or 4x 140mm fan mounts, you have ample space to configure your desired cooling solution. The two included Dynamic X2 fans provide excellent airflow, and the mesh front panel ensures ample ventilation for your components. Even without additional fans, the Meshify 2 Mini kept my system running cool and quiet under heavy load.
I tested the Meshify 2 Mini with a high-end Intel Core i9 processor and an NVIDIA GeForce RTX 4080 graphics card. During demanding gaming sessions and benchmarking, the system remained stable and cool, with temperatures consistently below the thermal limits.
Pros & Cons
Pros:
- Excellent cooling performance with ample fan support
- Compact design ideal for smaller builds
- Clean and minimalist aesthetic
- Tool-less side panels for easy access
- Robust construction with high-quality materials
- Effective dust filters
- Good cable management features
- Plenty of room for expansion and upgrades
- Includes two Dynamic X2 fans
Cons:
- Limited space for larger components (e.g., long GPUs)
- The HDD cage can be restrictive for airflow
- Price might be higher than some comparable cases
Final Verdict
The Fractal Meshify 2 Mini is a great option for anyone building a compact mATX system that prioritizes performance and aesthetics. Its excellent cooling capabilities, thoughtful design, and generous features make it a strong contender in its class. While it may not be the most budget-friendly option, the Meshify 2 Mini delivers exceptional build quality, performance, and aesthetics, making it well worth the investment.
If you’re looking for a small form factor case with impressive cooling and build quality, the Fractal Meshify 2 Mini is a highly recommended choice.
