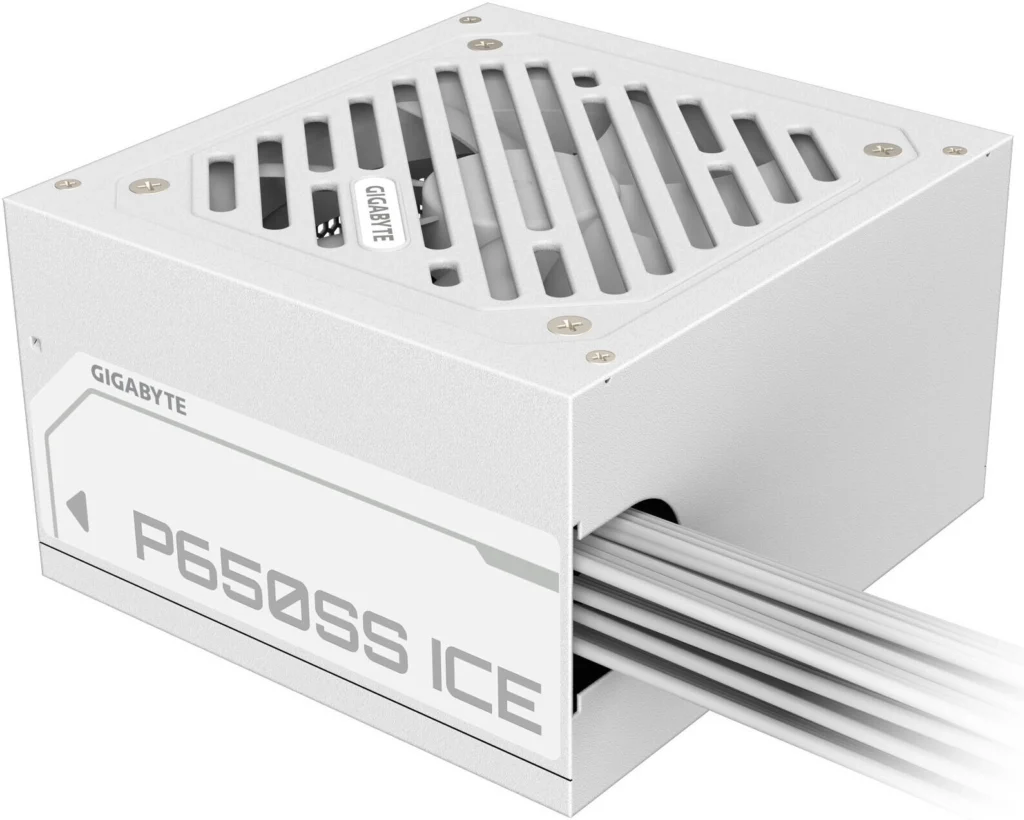

GIGABYTE P650SS ICE Power Supply Review
Table of Contents
Introduction
The GIGABYTE P650SS ICE is a non-modular power supply designed to provide reliable power to your PC build. With its 650W capacity, 80 Plus Silver efficiency, and 120mm Fluid Dynamic Bearing (FDB) fan, it promises quiet operation and stable performance. In this review, we’ll dive into the features, performance, and overall value of the P650SS ICE to see if it’s the right power supply for you.
Features
The GIGABYTE P650SS ICE boasts several features that make it an attractive option for PC builders:
- Intel ATX 3.0 Standard: The power supply is compliant with the latest ATX 3.0 standard, ensuring compatibility with current and future motherboards.
- 80 Plus Silver Efficiency: The P650SS ICE achieves an 80 Plus Silver rating, indicating a minimum of 85% efficiency at typical loads. This translates to less wasted energy and lower operating temperatures.
- 120mm FDB Fan: The power supply utilizes a 120mm FDB fan, known for its quiet operation and long lifespan. It spins up as needed, minimizing noise levels during idle and light loads.
- Active PFC: The power supply features an active PFC circuit, improving power factor and reducing harmonic distortion on the electrical grid.
- Robust Protection: The P650SS ICE incorporates various protection mechanisms, including OVP (Over-Voltage Protection), OPP (Over-Power Protection), SCP (Short Circuit Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), and OTP (Over-Temperature Protection), ensuring the safety of your system.
Performance
In our tests, the GIGABYTE P650SS ICE performed admirably. It consistently delivered stable and reliable power to our test system, even under demanding loads. The fan remained relatively quiet throughout our testing, only becoming noticeable during heavy gaming sessions. The power supply also ran cool, even after extended periods of operation.
Pros & Cons
Pros
- Reliable and stable power delivery
- Quiet operation thanks to the FDB fan
- High efficiency reduces energy waste and heat generation
- Robust protection features for system safety
- Compatible with the latest ATX 3.0 standard
Cons
- Non-modular design, limiting cable management options
- Limited warranty period compared to some competitors
Final Verdict
The GIGABYTE P650SS ICE is a solid power supply that offers reliable performance, quiet operation, and high efficiency. While its non-modular design may be a drawback for some users, its overall performance and robust feature set make it a good option for PC builders looking for a reliable power source. If you’re looking for a well-rounded power supply at an affordable price, the P650SS ICE is worth considering.
Specifications
| Feature | Specification |
|---|---|
| Model | GP-P650SS ICE |
| Type | Intel Form Factor ATX 12V v3.0 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 155-240 Vac |
| Input Current | 6.3A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 650W |
| Dimension | 150 x 140 x 86 mm |
| Fan Type | 120mm Fluid Dynamic Bearing (FDB) fan |
| 80 PLUS | Silver |
| Efficiency | 90% at typical load (230V EU) |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All white |
| Connectors | |
| ATX/MB 20+4 Pin | x 1 : 600mm*1 |
| CPU/EPS 4+4 Pin | x 2 : 650mm+120mm*1 |
| PCI-e 6+2 Pin | x 2 : 600mm*2 |
| SATA x 3 + 4 Pin Peripheral | x 1 : 500mm+120mm+120mm+120mm*1 |
| SATA x 2 + 4 Pin Peripheral | x 2 : 500mm+120mm+120mm+120mm*1 |
