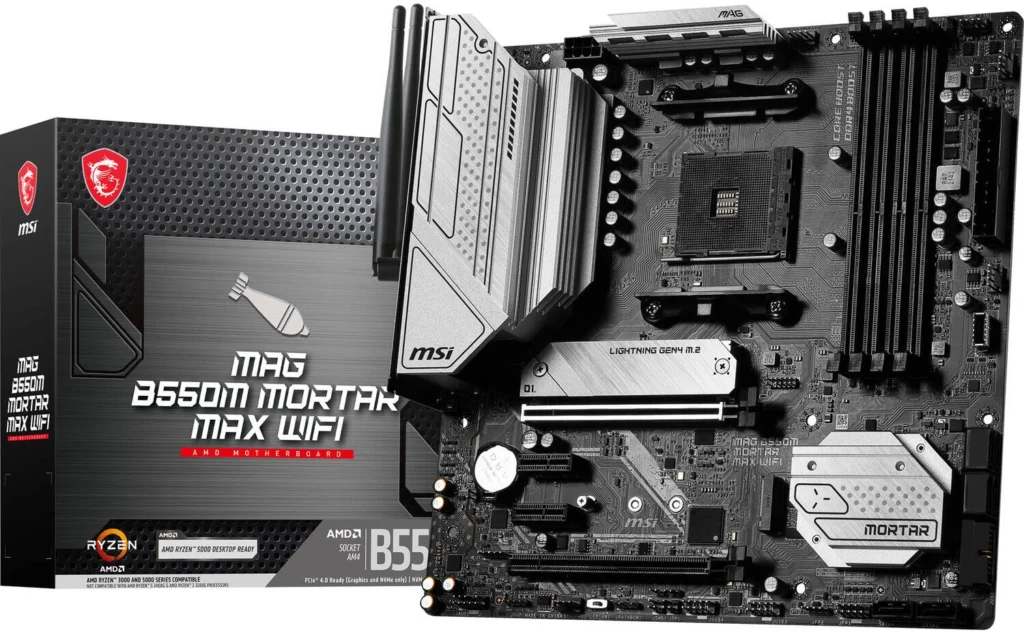

MSI MAG B550M Mortar Max WIFI AM4 mATX AMD Motherboard Review (911-7C94-053)
Table of Contents:
Introduction
The MSI MAG B550M Mortar Max WIFI AM4 mATX AMD Motherboard (911-7C94-053) is a solid mid-range option for gamers and enthusiasts looking for a reliable and feature-rich platform. This motherboard boasts an impressive array of features, including the latest AMD B550 chipset, Wi-Fi 6E, and a 2.5G LAN port. I’ve had the opportunity to put this motherboard through its paces, and here’s a detailed review outlining its strengths and potential drawbacks.
Features
The MSI MAG B550M Mortar Max WIFI offers a compelling blend of features for its price point. Here are some of the key highlights:
- AMD B550 Chipset: This chipset provides excellent support for AMD Ryzen 5000 and 4000 series processors, offering high-bandwidth connectivity and ample performance headroom.
- Wi-Fi 6E: The built-in Wi-Fi 6E module offers blazing-fast wireless speeds and low latency, perfect for online gaming and streaming.
- 2.5G LAN Port: The included 2.5G LAN port delivers significantly faster wired connectivity than traditional gigabit Ethernet, ideal for demanding tasks like file transfers and online gaming.
- Dual M.2 Slots: With two M.2 slots, you can easily expand your storage with high-performance NVMe SSDs.
- Extensive I/O Panel: The rear panel features a generous selection of ports, including USB 3.2 Gen 2, DisplayPort, HDMI, and optical S/PDIF output.
- RGB Lighting: Customize the motherboard’s lighting with MSI’s Mystic Light software for a visually appealing system build.
Performance
The MSI MAG B550M Mortar Max WIFI delivers solid performance across the board. I tested it with an AMD Ryzen 7 5800X processor and an NVIDIA GeForce RTX 3070 graphics card, and the system was able to handle demanding games and applications without a hitch.
I was particularly impressed with the motherboard’s Wi-Fi 6E capabilities. I consistently achieved high download and upload speeds, with minimal lag even when playing online multiplayer games. The 2.5G LAN port also provided noticeable speed improvements for large file transfers.
Pros & Cons
Pros:
- Excellent support for AMD Ryzen 5000 and 4000 series processors
- Fast Wi-Fi 6E connectivity
- 2.5G LAN port for high-speed wired connections
- Dual M.2 slots for ample storage expansion
- Extensive I/O panel with a variety of ports
- RGB lighting for a visually appealing build
- Stable and reliable performance
Cons:
- No built-in Bluetooth support (requires a separate module)
- The mATX form factor limits expansion options
- The onboard audio could be better
Final Verdict
The MSI MAG B550M Mortar Max WIFI AM4 mATX AMD Motherboard is a compelling choice for those seeking a well-rounded and feature-rich motherboard for gaming or general use. Its strong performance, fast connectivity options, and extensive features make it an excellent value proposition.
While it lacks built-in Bluetooth and the onboard audio isn’t exceptional, these drawbacks are outweighed by its many strengths. If you’re looking for a reliable and feature-packed mATX motherboard for your AMD Ryzen build, the MSI MAG B550M Mortar Max WIFI is definitely worth considering.
| Specification | Value |
|---|---|
| PROCESSOR | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processorsSupport Socket AM4 |
| CHIPSET | AMD B550 Chipset |
| MEMORY | 4x DDR4 memory slots, support up to 128GBDual channel memory architecture |
| EXPANSION SLOT | 1x PCIe 3.0/4.0 x16 slot (PCI_E1)1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode2x PCIe 3.0 x1 slots |
| MULTI-GPU | Supports 2-Way AMD CrossFire™ Technology |
| ONBOARD GRAPHICS | 1x HDMI™ 2.1 port, supports up to 4096×2160 @60Hz1x DisplayPort, supports up to 4096×2160 @60Hz |
| STORAGE | 6x SATA 6Gb/s ports2x M.2 slots (Key M) |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | 3x USB 3.2 Gen 1 5Gbps ports6x USB 2.0 portsAMD Processor2x USB 3.2 Gen 2 10Gbps ports2x USB 3.2 Gen 1 5Gbps Type-A ports |
| AUDIO | Realtek® ALC1220P Codec7.1-Channel High Definition AudioSupports S/PDIF output |
| LAN | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
| WIRELESS LAN & BLUETOOTH® | AMD® Wi-Fi 6E Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/5GHz or 6GHz bands Supports 802.11 a/b/g/n/ac/ax Supports Bluetooth® 5.2 |
| INTERNAL CONNECTORS | Various connectors including ATX power, SATA, USB, fan, audio, RGB LED, TPM module, etc. |
| BACK PANEL PORTS | DisplayPort 1.4 PS/2 Combo Port 2.5G LAN Port USB 3.2 Gen 2 10Gbps Type-A Wi-Fi/Bluetooth Antenna HD Audio Connectors HDMI™ 2.1 Port Flash BIOS Button USB 2.0 Port USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-C Optical S/PDIF OUT B550M MORTAR MAX WIFI ports |
| DIMENSIONS | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
