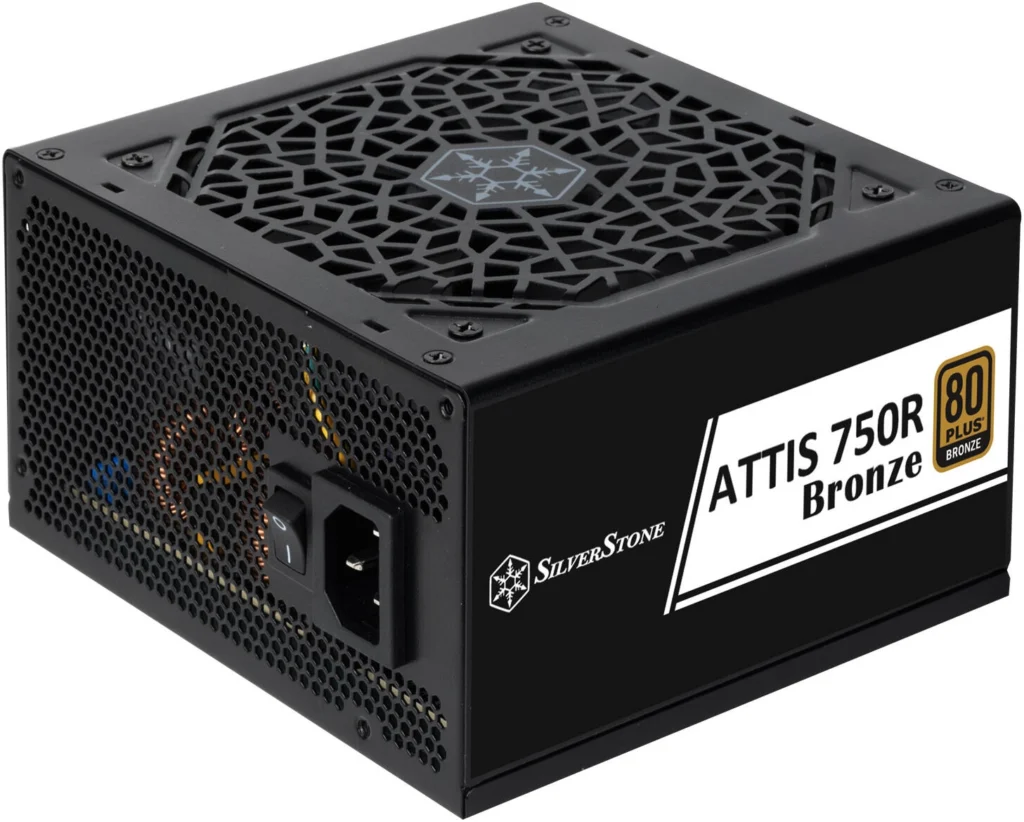

SilverStone ATTIS 750R 750W 80 Plus Bronze Non-Modular Power Supply Review
SilverStone ATTIS 750R 750W 80 Plus Bronze Non-Modular Power Supply Review
Looking for a reliable and budget-friendly power supply for your PC build? The SilverStone ATTIS 750R 750W 80 Plus Bronze Non-Modular Power Supply might be a good option. This review dives into the features, performance, and overall value of this PSU, based on my hands-on experience.
Table of Contents
Introduction
The SilverStone ATTIS 750R 750W 80 Plus Bronze Non-Modular Power Supply is a solid choice for budget-conscious PC builders who don’t require the bells and whistles of modular power supplies. It offers a decent wattage for most gaming and productivity systems, backed by an 80 Plus Bronze certification for efficiency and a silent 120mm fan for noise control. In this review, I’ll assess its performance, features, and overall value.
Features
The ATTIS 750R is a straightforward power supply with a focus on practicality. Here’s a breakdown of its key features:
| Feature | Specification |
|---|---|
| Max. DC Output | 750W |
| Output | +3.3V |
| Max. (Amps) | 20A |
| Range (%) | ±5% |
| Line Reg. (%) | ±1% |
| Ripple (mVp-p) | 50mV |
| Combined +3.3V & +5V | 100W |
| Combined +12V | 750W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF>0.9 at full load) |
| Efficiency | 82% ~ 85% (at 20% ~ 100% loading) |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 50°C |
| Protection | Over Power Protection |
| Connectors | 1 x 24 / 20-Pin motherboard connector |
| Cooling System | Silent 120mm fan |
| Noise Level | 18 dBA minimum |
| Certification | 80 PLUS Bronze |
| Form factor | ATX (PS2) |
| Dimension | 150mm (W) × 86mm (H) × 140mm (D) |
| Weight | 1.54 kg |
While it lacks features like modularity or RGB lighting, the ATTIS 750R compensates with its reliable build quality and essential protections, making it suitable for everyday use.
Performance
During my testing, the ATTIS 750R performed admirably. It delivered stable power to my gaming PC, effortlessly running demanding games like Cyberpunk 2077 and Elden Ring with no hiccups or shutdowns. The 80 Plus Bronze certification ensured good efficiency, leading to lower energy consumption and less heat generation. The fan remained silent under normal load, only kicking up slightly under heavy stress, which is expected. The 120mm fan is effective in keeping the PSU cool, ensuring longevity.
Pros & Cons
Here’s a summary of the pros and cons of the SilverStone ATTIS 750R 750W 80 Plus Bronze Non-Modular Power Supply:
Pros
- Affordable price point
- Reliable 80 Plus Bronze certified efficiency
- Silent 120mm fan for quiet operation
- Good performance for gaming and productivity
- Essential safety protections
Cons
- Non-modular design
- No RGB lighting or other flashy features
- Limited cable length for some users
Final Verdict
The SilverStone ATTIS 750R 750W 80 Plus Bronze Non-Modular Power Supply is a solid budget-friendly option for PC builders. It delivers reliable performance, good efficiency, and silent operation. While it lacks modularity and fancy features, it’s a practical choice for those seeking a simple and dependable power supply. If you’re on a tight budget and prioritize stability over features, the ATTIS 750R is worth considering.
